Duplex Fiber Media Converter

Model No .

Description

NCR-5108

Multimode Duplex Fiber Media Convertor NCR-5108,2KM,10/100M

NCR-5208

Single Mode Duplex Fiber Media Convertor NCR-5208,20KM,10/100M

NCR-8108

Multimode Duplex Fiber Media Convertor NCR-8108,2KM,10/100/1000M

NCR-8208

Single Mode Duplex Fiber Media Convertor NCR-8208,20KM,10/100/1000M

Single Fiber Media Converter

Model No .

Description

NCR-5208(A)

Single Mode Single Fiber Dual way Media Convertor NCR-5208,( 56830322,A) 20KM,10/100M

NCR-5208(B)

Single Mode Single Fiber Dual way Media Convertor NCR-5208,( 56830323,B) 20KM,10/100M

NCR-8208(A)

Single Mode Single Fiber Dual way Media Convertor NCR-8208,( 56830324,A) 20KM,10/100/1000M

NCR-8208(B)

Single Mode Single Fiber Dual way Media Convertor NCR-8208,( 56830325,B) 20KM,10/100/1000M

Single Fiber Dual Ethernet Media Converter

Model No .

Description

NCR-5208T(A)

Single Mode Single Fiber Dual Ethernet Media Convertor NCR-5208T,( 56830326,A) 20KM,10/100/1000M

NCR-5208T(B)

Single Mode Single Fiber Dual Ethernet Media Convertor NCR-8208,( 56830327,B) 20KM,10/100/1000M

NCR-8208T(A)

Single Mode Single Fiber Dual Ethernet Media Convertor NCR-8208T,( 56830328,A) 20KM,10/100/1000M

NCR-8208T(B)

Single Mode Single Fiber Dual Ethernet Media Convertor NCR-8208T,( 56830329,B) 20KM,10/100/1000M

Duplex Fiber Dual Ethernet Media Converter

Model No .

Description

NCR-5108T

Multimode Duplex Fiber Dual Ethernet Media Convertor NCR-5108T,2KM,10/100M

NCR-5208T

Single Mode Duplex Fiber Dual Ethernet Media Convertor NCR-5208T,20KM,10/100M

NCR-8108T

Multimode Duplex Fiber Dual Ethernet Media Convertor NCR-8108T,2KM,10/100/1000M

NCR-8208T

Single Mode Duplex Fiber Dual Ethernet Media Convertor NCR-8208T,20KM,10/100/1000M

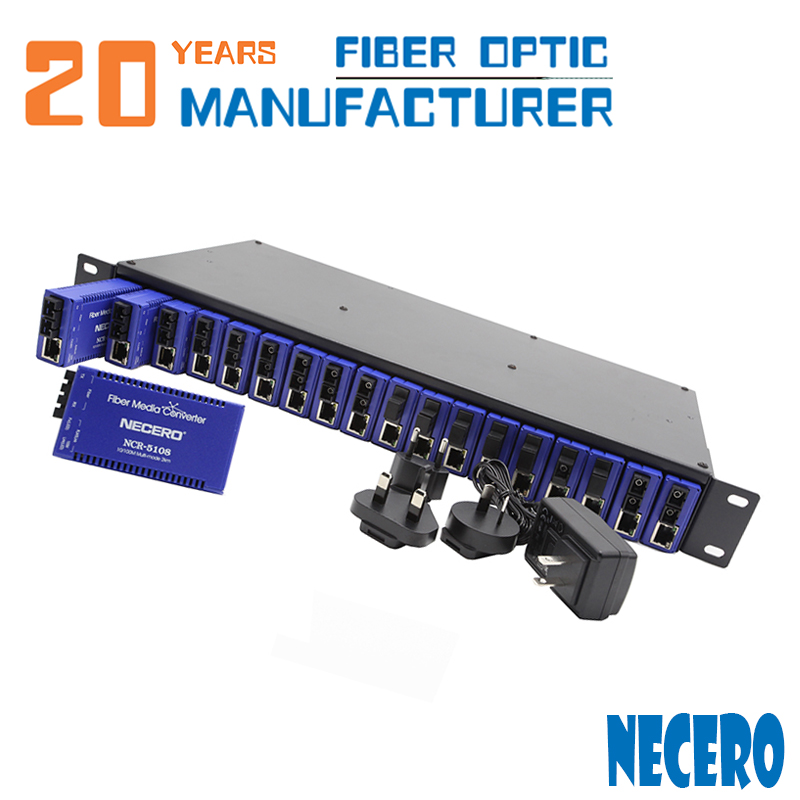

Media Converter Power Tray

Model No .

Description

NCR-18SL

18 Slot Media converter rackmount chasis,12V,1.5U height

·Introduction

NCR-5208 media convector used for the exchanging between Ethernet and fiber.The machine comprises 1 Ethernet port and 2 fiber port,and expanded the LAN cable transmission distance from 100 meters to 2 kilometers. It realized the inter connections between different telecom equipment and widely been used in Telecommunication,CATV,Bandwidth network,CCTV where demands high performance and reliability network environment.

·Characteristics

· Special used for exchanging between Ethernet LAN cable and Fiber.

· Special maded chip with low consumption,supporting over longtime frame.

· Superior Photoelectric integrated module which provide good optical and electrical performance.

· Ensure the reliability of data transmitting,long operating life span.

· Support Internal and External:1.5U rack mount,optional installation method.

·Average of No trouble working time to 50000 hours,meet the ITU-T standard.

· Integrated after selling services, 3 years warranty, lifetime Maintenance Service.

 ·Technical Parameters

· Standard:IEEE 802.3 10BaseT,IEEE 802.3u 100Base-TX,100Base-FX,IEEE 802.3z/AB 1000Base-T/SX/LX/ZX.

· Interface:Twisted pair cable:RJ45;Fiber:SC/ST/FC.

· 100 base LED:PWR, FX 100,FX Link/Act,FDX,TX 100,TX Link/Act.

· Transmission Speed: LAN cable:10Mbps,100Mbps,Fiber:100Mbps.

· Duplex Way: Ethernet duplex or half duplex.

· Flow control: Full duplex IIEEE 802.3x flow control:Half duplex back flow control.

· LAN Cable: Category 5,Category 5E,Category 6.

· Fiber Type: Single mode 8.3/125,8.7/125,9/125,10 /125u

·Power:AC:110v-240v wide voltage input,50Hz;DC:12V 0.5A(Compatible 5-19V,6W),equipped with ·USA,British,Europe,Austria total 4 types changeable plug.

· Environment Temperature:-20~65℃.

· Storage Temperature:-20~70℃.

· Humidity:5%~90%.

· Size:86×48×22mm((H×D×W).

· IEEE 802.3 Ethernet.

· IEEE 802.3U Ethernet.

· IEEE 802.3ab Ethernet.

· IEEE 802.3z Ethernet.

· IEEE 802.1d Spanning Tree.

 ·Application

· Inter cities fiber optic network: Applied in telecom and CATV data network operators.

· Bandwidth application: Applied in Financial,governmental,oil,railway,power grid,transportation,education special networks.

· Data transmission: image, voice, data comprehensive transmission,applicable for remote

education, video conference, CCTV surveillance control signal,image and data simultaneous transmission.
